Clip, specific description of audio and video files. More...

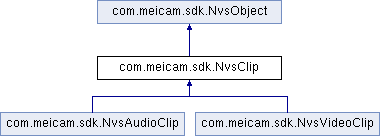

Inheritance diagram for com.meicam.sdk.NvsClip:

Public Member Functions
NvsTimeline	getInternalTimeline ()
	Gets the internal timeline object from the clip. More...

long	getTrimIn ()
	Gets the trim in point of the clip. More...

long	getTrimOut ()
	Gets the trim out point of the clip. More...

boolean	moveTrimPoint (long offset)
	Move trim points of clip(in microseconds) More...

long	getInPoint ()
	Gets the in-point of the clip on the timeline. More...

long	getOutPoint ()
	Gets the out-point of the clip on the timeline. More...

int	getType ()
	Gets the clip type (video clip, audio clip). More...

int	getClipMode ()
	Gets the clip mode (media clip, timeline clip). More...

int	getIndex ()
	Gets the index of the clip on the track. More...

boolean	changeClipMode (int clipMode)
	Change the clip mode. More...

boolean	changeFilePath (String filePath)
	Change the clip file path. More...

boolean	changeInternalTimeline (NvsTimeline timeline)
	Change the clip internal timeline. More...

String	getFilePath ()
	Gets the clip file path. More...

int	getFxCount ()
	Gets the number of effects on the clip. Note: The effect index on the clip starts from 0. More...

long	changeTrimInPoint (long newTrimInPoint, boolean affectSibling)
	Modifies the trim in point of the clip. More...

long	changeTrimOutPoint (long newTrimOutPoint, boolean affectSibling)
	Modifies the trim out point of the clip. More...

double	getSpeed ()
	Get the playback speed of the clip. More...

boolean	isKeepAudioPitch ()
	Is keep the tone unchanged. More...

void	changeSpeed (double newSpeed)
	Changes the playback speed of the clip. More...

boolean	changeCurvesVariableSpeed (String curvesString, boolean keepAudioPitch)
	Changes the playback speed of the clip by curves(only support for video clip). More...

String	getClipVariableSpeedCurvesString ()
	get current variable speed curves of clip. More...

NvsAudioFx	getAudioVolumeFx ()
	Gets the audio volume effect of the clip. More...

void	changeSpeed (double newSpeed, boolean keepAudioPitch)
	Changes the playback speed of the clip. More...

void	setVolumeGain (float leftVolumeGain, float rightVolumeGain)
	Sets the volume. More...

NvsVolume	getVolumeGain ()
	Gets volume. More...

NvsVolume	getRealVolumeAtTime (long time)
	Get the real-time volume at a specified time point. More...

void	setLoopAudio (boolean loop)
	Sets whether to loop audio if the clip' trim out go beyond its audio stream's duration. More...

boolean	getLoopAudio ()
	Gets whether to loop audio if the clip' trim out go beyond its audio stream's duration. More...

long	GetClipPosByTimelinePosCurvesVariableSpeed (long timelinePos)
	Gets the pos in clip by current timeline pos when used curves variable speed. More...

long	GetTimelinePosByClipPosCurvesVariableSpeed (long clipPos)
	Gets the pos in timelne by current clip pos when used curves variable speed. More...

Public Member Functions inherited from com.meicam.sdk.NvsObject
void	setAttachment (String key, Object value)
	Adds additional data to the NvsObject object to identify the NvsObject object or for other purpose. More...

void	setTemplateAttachment (String key, String value)
	Adds additional template data to the NvsObject object to identify the NvsObject template object. More...

Object	getAttachment (String key)
	Gets an attachment to NvsObject. More...

String	getTemplateAttachment (String key)
	Gets an template attachment to NvsObject. More...

Static Public Attributes
clip type

static final int	CLIP_TYPE_VIDEO = 0
	video clip type More...

static final int	CLIP_TYPE_AUDIO = 1
	audio clip type More...

clip mode

static final int	CLIP_MODE_MEDIA = 0
	video clip type More...

static final int	CLIP_MODE_TIMELINE = 1
	audio clip type More...

Static Public Attributes inherited from com.meicam.sdk.NvsObject
static final String	TEMPLATE_KEY_REPLACE_ID = "MSTemplate-ReplaceId"

static final String	TEMPLATE_KEY_FOOTAGE_CAN_REPLACE = "MSTemplate-FootageCanReplace"

static final String	TEMPLATE_KEY_FOOTAGE_ID = "MSTemplate-FootageId"

static final String	TEMPLATE_KEY_FOOTAGE_NAME = "MSTemplate-FootageName"

static final String	TEMPLATE_KEY_FOOTAGE_M3U8_NAME = "MSTemplate-FootageM3U8Name"

static final String	TEMPLATE_KEY_FOOTAGE_TAGS = "MSTemplate-FootageTags"

static final String	TEMPLATE_KEY_FOOTAGE_TYPE = "MSTemplate-FootageType"

static final String	TEMPLATE_KEY_FOOTAGE_NEED_REVERSE = "MSTemplate-FootageNeedReverse"

static final String	TEMPLATE_KEY_CLIP_RAW_WIDTH = "MSTemplate-ClipRawWidth"

static final String	TEMPLATE_KEY_CLIP_RAW_HEIGHT = "MSTemplate-ClipRawHeight"

static final String	TEMPLATE_KEY_VOLUME_TYPE = "MSTemplate-VolumeType"

static final String	TEMPLATE_KEY_FX_GROUP = "MSTemplate-FxGroup"

static final String	TEMPLATE_KEY_BEST_SEEK_TIME = "MSTemplate-BestSeekTime"

static final String	TEMPLATE_KEY_MASK_TYPE = "MSTemplate-MaskType"

static final String	TEMPLATE_VALUE_MASK_TYPE_LINE = "MSTemplate-MaskType-Line"

static final String	TEMPLATE_VALUE_MASK_TYPE_MIRROR = "MSTemplate-MaskType-Mirror"

static final String	TEMPLATE_VALUE_MASK_TYPE_CIRCLE = "MSTemplate-MaskType-Circle"

static final String	TEMPLATE_VALUE_MASK_TYPE_RECT = "MSTemplate-MaskType-Rect"

static final String	TEMPLATE_VALUE_MASK_TYPE_HEART = "MSTemplate-MaskType-Heart"

static final String	TEMPLATE_VALUE_MASK_TYPE_STAR = "MSTemplate-MaskType-Star"

static final String	TEMPLATE_KEY_TRANS_TYPE_CUT = "MSTemplate-TransType-Cut"

static final String	TEMPLATE_KEY_CURVE_SPEED_TYPE = "MSTemplate-CurveSpeedType"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_CUSTOM = "MSTemplate-CurveSpeedType-Custom"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_MONTAGE = "MSTemplate-CurveSpeedType-Montage"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_HERO = "MSTemplate-CurveSpeedType-Hero"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_BULLET = "MSTemplate-CurveSpeedType-bullet"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_PLUS = "MSTemplate-CurveSpeedType-Plus"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_IN = "MSTemplate-CurveSpeedType-In"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_OUT = "MSTemplate-CurveSpeedType-Out"

Additional Inherited Members
Protected Member Functions inherited from com.meicam.sdk.NvsObject
void	setInternalObject (long internalObject)

long	getInternalObject ()

Protected Attributes inherited from com.meicam.sdk.NvsObject
long	m_internalObject = 0

Detailed Description

Clip, specific description of audio and video files.

A clip is an entity that accommodates audio and video content. It is a description of video and audio files, and is divided into an audio clip (Audio Clip) and a video clip (Video Clip). It defines the common attributes and behaviors of different types of clips. That is, the derived audio clips and video clips can be modified for your demand. These modifications include trim in and out points, left or right volume channels, playback speed and so on. In the SDK framework, corresponding audio clips and video clips can be added to the track.

Warning: In the NvsClip class, all public APIs are used in the UI thread! ! !

Member Function Documentation

◆ changeClipMode()

boolean com.meicam.sdk.NvsClip.changeClipMode ( int clipMode )

inline

Change the clip mode.

Parameters

clipMode new clip mode. Two types of clips are included, namely the media clip mode and the timeline clip mode. Please refer to clip mode.

Returns: Returns whether suc.

Since: 3.13.0

◆ changeCurvesVariableSpeed()

boolean com.meicam.sdk.NvsClip.changeCurvesVariableSpeed	(	String	curvesString,
		boolean	keepAudioPitch
	)

inline

Changes the playback speed of the clip by curves(only support for video clip).

Parameters

curvesString description of the variable speed curves. \string foramt : (endpoint1)(endpoint1.backward)(endpoint1.frontward)(endpoint2)(endpoint2.backward)(endpoint2.frontward)…… \coords foramt : (x,y) \note1 : the y coords means the multiple speed. the range of y is 0.1 to 10 \note2 : all x coord values cannot be repeated. endpoint1.backward.x < endpoint1.x < endpoint1.frontward.x < endpoint2.backward.x <endpoint2.x…… \note3 : if you set an empty curvesString,it means you want to disable curves variable speed,the clip will back to const speed. \eg : curvesString = "(0,1)(-3,1)(3,1)(7,5)(6,5)(8,5)(10,0.4)(9,0.4)(11,0.4)(17,0.4)(16,0.4)(18,0.4)(20,5)(19,5)(21,5)(27,1)(24,1)(30,1)" curvesString included 6 group end point info .

keepAudioPitch Keep the tone unchanged.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, see Engine Change Feature for details.

Since: 2.17.0

◆ changeFilePath()

boolean com.meicam.sdk.NvsClip.changeFilePath ( String filePath )

inline

Change the clip file path.

Parameters

clipMode new file path

Returns: Returns whether suc.

◆ changeInternalTimeline()

boolean com.meicam.sdk.NvsClip.changeInternalTimeline ( NvsTimeline timeline )

inline

Change the clip internal timeline.

Parameters

timeline new timeline

Returns: Returns whether suc.

Since: 3.13.0

◆ changeSpeed() [1/2]

void com.meicam.sdk.NvsClip.changeSpeed ( double newSpeed )

inline

Changes the playback speed of the clip.

Parameters

newSpeed New playback speed.Attention newSpeed > 0.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, refer to Engine Change Feature for details.

See also: getSpeed

◆ changeSpeed() [2/2]

void com.meicam.sdk.NvsClip.changeSpeed	(	double	newSpeed,
		boolean	keepAudioPitch
	)

inline

Changes the playback speed of the clip.

Parameters

newSpeed	New playback speed..Attention newSpeed > 0.
keepAudioPitch	Keep the tone unchanged.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, see Engine Change Feature for details.

See also: getSpeed

Since: 1.15.1

◆ changeTrimInPoint()

long com.meicam.sdk.NvsClip.changeTrimInPoint	(	long	newTrimInPoint,
		boolean	affectSibling
	)

inline

Modifies the trim in point of the clip.

Parameters

newTrimInPoint	New trim in point (in microseconds).
affectSibling	Whether it affects other clips on the same track (true/false).

Returns: Returns the actual reachable trim in point (in microseconds). Note: The actual achievable trim in point is within [0,trimOut - 1].

Warning: This interface will cause the streaming engine state to jump to the engine stop state, please refer to Engine Change Feature for details.

See also: changeTrimOutPoint; getTrimIn

◆ changeTrimOutPoint()

long com.meicam.sdk.NvsClip.changeTrimOutPoint	(	long	newTrimOutPoint,
		boolean	affectSibling
	)

inline

Modifies the trim out point of the clip.

Parameters

newTrimOutPoint	New trim out point (in microseconds).
affectSibling	Whether it affects other clips on the same track (true/false).

Returns: Returns the actual reachable trim out point (in microseconds). Note: The actual achievable trim out point is within [trimIn + 1, clipDuration] and clipDuration is the clip duration.

Warning: This interface will cause the streaming engine state to jump to the engine stop state, refer to Engine Change Feature for details.

See also: changeTrimInPoint; getTrimOut

◆ getAudioVolumeFx()

NvsAudioFx com.meicam.sdk.NvsClip.getAudioVolumeFx ( )

inline

Gets the audio volume effect of the clip.

Returns: Returns the obtained NvsAudioFx object.

◆ getClipMode()

int com.meicam.sdk.NvsClip.getClipMode ( )

inline

Gets the clip mode (media clip, timeline clip).

Returns: Returns the clip type value. The return value is a static int value prefixed by CLIP_MODE. Two types of clips are included, namely the media clip mode and the timeline clip mode. Please refer to clip mode.

Since: 3.13.0

◆ GetClipPosByTimelinePosCurvesVariableSpeed()

long com.meicam.sdk.NvsClip.GetClipPosByTimelinePosCurvesVariableSpeed ( long timelinePos )

inline

Gets the pos in clip by current timeline pos when used curves variable speed.

Returns: Returns long value to indicate the clip pos,return -1 indicate failed .

Since: 2.17.0

◆ getClipVariableSpeedCurvesString()

String com.meicam.sdk.NvsClip.getClipVariableSpeedCurvesString ( )

inline

get current variable speed curves of clip.

Warning: the x coords at the each output curves' endpoint is relative,user can scale x to any size. eg: scale curves range to equal with clip length.

See also: changeCurvesVariableSpeed

Since: 2.17.0

◆ getFilePath()

String com.meicam.sdk.NvsClip.getFilePath ( )

inline

Gets the clip file path.

Returns: Returns the string of the clip path.

◆ getFxCount()

int com.meicam.sdk.NvsClip.getFxCount ( )

inline

Gets the number of effects on the clip. Note: The effect index on the clip starts from 0.

Returns: Returns the number of special effects on the clip.

◆ getIndex()

int com.meicam.sdk.NvsClip.getIndex ( )

inline

Gets the index of the clip on the track.

Returns: Returns the index value of the clip on the track.

◆ getInPoint()

long com.meicam.sdk.NvsClip.getInPoint ( )

inline

Gets the in-point of the clip on the timeline.

Returns: Returns the in-point value of the clip on the timeline (in microseconds).

See also: getOutPoint; getTrimIn

◆ getInternalTimeline()

NvsTimeline com.meicam.sdk.NvsClip.getInternalTimeline ( )

inline

Gets the internal timeline object from the clip.

Returns: Returns the timeline object of the clip.If the clip is not the timeline clip, returns null.

Since: 2.24.0

◆ getLoopAudio()

boolean com.meicam.sdk.NvsClip.getLoopAudio ( )

inline

Gets whether to loop audio if the clip' trim out go beyond its audio stream's duration.

Returns: Returns boolean value to indicate whether to loop audio

See also: setLoopAudio

Since: 2.9.0

◆ getOutPoint()

long com.meicam.sdk.NvsClip.getOutPoint ( )

inline

Gets the out-point of the clip on the timeline.

Returns: Returns the out-point value (in microseconds) of the clip on the timeline.

See also: getInPoint; getTrimOut

◆ getRealVolumeAtTime()

NvsVolume com.meicam.sdk.NvsClip.getRealVolumeAtTime ( long time )

inline

Get the real-time volume at a specified time point.

Returns: Return the volume object.

Since: 3.0.0

◆ getSpeed()

double com.meicam.sdk.NvsClip.getSpeed ( )

inline

Get the playback speed of the clip.

The default value is 1, which means that it plays at normal speed; the value less than 1 means slower playback; the value greater than 1 means faster playback.

Returns: Returns the playback speed of the current clip.

See also: changeSpeed

◆ GetTimelinePosByClipPosCurvesVariableSpeed()

long com.meicam.sdk.NvsClip.GetTimelinePosByClipPosCurvesVariableSpeed ( long clipPos )

inline

Gets the pos in timelne by current clip pos when used curves variable speed.

Returns: Returns long value to indicate the timeline pos,return -1 indicate failed .

Since: 2.17.0

◆ getTrimIn()

long com.meicam.sdk.NvsClip.getTrimIn ( )

inline

Gets the trim in point of the clip.

Returns: Returns the trim in point of the clip (in microseconds).

See also: getTrimOut; changeTrimInPoint; getInPoint

◆ getTrimOut()

long com.meicam.sdk.NvsClip.getTrimOut ( )

inline

Gets the trim out point of the clip.

Returns: Returns the trim out point of the clip (in microseconds).

See also: getTrimIn; changeTrimOutPoint; getOutPoint

◆ getType()

int com.meicam.sdk.NvsClip.getType ( )

inline

Gets the clip type (video clip, audio clip).

Returns: Returns the clip type value. The return value is a static int value prefixed by CLIP_TYPE. Two types of clips are included, namely the audio clip type and the video clip type. Please refer to clip type.

◆ getVolumeGain()

NvsVolume com.meicam.sdk.NvsClip.getVolumeGain ( )

inline

Gets volume.

Returns: Returns the volume object obtained.

See also: getVolumeGain

◆ isKeepAudioPitch()

boolean com.meicam.sdk.NvsClip.isKeepAudioPitch ( )

inline

Is keep the tone unchanged.

The default value is false

Returns: Returns is keep the tone unchanged.

See also: changeSpeed

◆ moveTrimPoint()

boolean com.meicam.sdk.NvsClip.moveTrimPoint ( long offset )

inline

Move trim points of clip(in microseconds)

Parameters

offset value，the existing trimIn + offset shall not exceed the original length of the clip

Returns: Returns true if succeeded

◆ setLoopAudio()

void com.meicam.sdk.NvsClip.setLoopAudio ( boolean loop )

inline

Sets whether to loop audio if the clip' trim out go beyond its audio stream's duration.

Parameters

loop	whether to loop audio

See also: getLoopAudio

Since: 2.9.0

◆ setVolumeGain()

void com.meicam.sdk.NvsClip.setVolumeGain	(	float	leftVolumeGain,
		float	rightVolumeGain
	)

inline

Sets the volume.

Parameters

leftVolumeGain	Left channel value, value range [0, 8).
rightVolumeGain	Right channel value, value range [0, 8).

See also: getVolumeGain

Member Data Documentation

◆ CLIP_MODE_MEDIA

final int com.meicam.sdk.NvsClip.CLIP_MODE_MEDIA = 0

static

video clip type

◆ CLIP_MODE_TIMELINE

final int com.meicam.sdk.NvsClip.CLIP_MODE_TIMELINE = 1

static

audio clip type

◆ CLIP_TYPE_AUDIO

final int com.meicam.sdk.NvsClip.CLIP_TYPE_AUDIO = 1

static

audio clip type

◆ CLIP_TYPE_VIDEO

final int com.meicam.sdk.NvsClip.CLIP_TYPE_VIDEO = 0

static

video clip type

The documentation for this class was generated from the following file:

src/android/jar/com/meicam/sdk/NvsClip.java

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ changeClipMode()

◆ changeCurvesVariableSpeed()

◆ changeFilePath()

◆ changeInternalTimeline()

◆ changeSpeed() [1/2]

◆ changeSpeed() [2/2]

◆ changeTrimInPoint()

◆ changeTrimOutPoint()

◆ getAudioVolumeFx()

◆ getClipMode()

◆ GetClipPosByTimelinePosCurvesVariableSpeed()

◆ getClipVariableSpeedCurvesString()

◆ getFilePath()

◆ getFxCount()

◆ getIndex()

◆ getInPoint()

◆ getInternalTimeline()

◆ getLoopAudio()

◆ getOutPoint()

◆ getRealVolumeAtTime()

◆ getSpeed()

◆ GetTimelinePosByClipPosCurvesVariableSpeed()

◆ getTrimIn()

◆ getTrimOut()

◆ getType()

◆ getVolumeGain()

◆ isKeepAudioPitch()

◆ moveTrimPoint()

◆ setLoopAudio()

◆ setVolumeGain()

Member Data Documentation

◆ CLIP_MODE_MEDIA

◆ CLIP_MODE_TIMELINE

◆ CLIP_TYPE_AUDIO

◆ CLIP_TYPE_VIDEO
