video track,the collection of video clips. More...

Inheritance diagram for com.meicam.sdk.NvsVideoTrack:

Public Member Functions

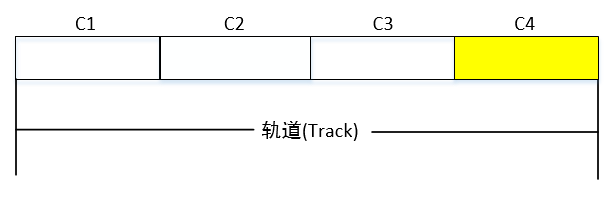

NvsVideoClip	appendClip (String filePath)
	Appends a video clip to the end of the video track. More...

NvsVideoClip	appendClip (String filePath, long trimIn, long trimOut)
	Appends a video clip of the specified length to the end of the video track. More...

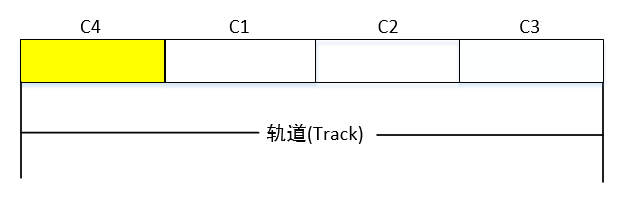

NvsVideoClip	insertClip (String filePath, int clipIndex)
	Inserts a video clip at the specified clip index on the video track. More...

NvsVideoClip	insertClip (String filePath, long trimIn, long trimOut, int clipIndex)
	Inserts a video clip of the specified length at the specified clip index on the video track. More...

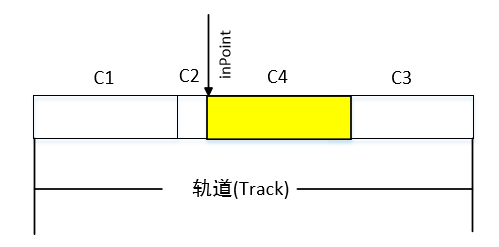

NvsVideoClip	addClip (String filePath, long inPoint)
	add clip. More...

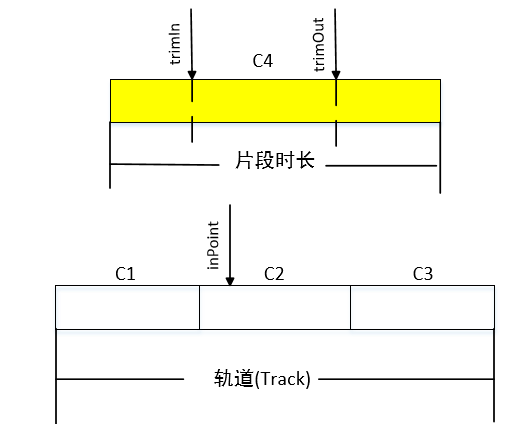

NvsVideoClip	addClip (String filePath, long inPoint, long trimIn, long trimOut)
	Adds a clip of the specified length. More...

NvsVideoClip	appendTimelineClip (NvsTimeline timeline)
	Appends a timeline clip to the end of the video track. More...

NvsVideoClip	appendTimelineClip (NvsTimeline timeline, long trimIn, long trimOut)
	Appends a timeline clip of the specified length to the end of the video track. More...

NvsVideoClip	insertTimelineClip (NvsTimeline timeline, int clipIndex)
	Inserts a timeline clip at the specified clip index on the video track. More...

NvsVideoClip	insertTimelineClip (NvsTimeline timeline, long trimIn, long trimOut, int clipIndex)
	Inserts a timeline clip of the specified length at the specified clip index on the video track. More...

NvsVideoClip	addTimelineClip (NvsTimeline timeline, long inPoint)
	Adds timeline clip. More...

NvsVideoClip	addTimelineClip (NvsTimeline timeline, long inPoint, long trimIn, long trimOut)
	Adds a timeline clip of the specified length. More...

NvsVideoClip	getClipByIndex (int clipIndex)
	Gets video clip by index. More...

NvsVideoClip	getClipByTimelinePosition (long timelinePos)
	Gets video clip by time. More...

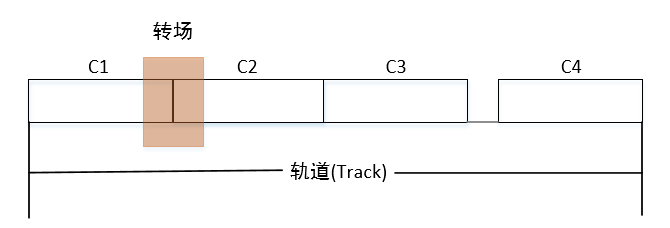

NvsVideoTransition	setBuiltinTransition (int srcClipIndex, String transitionName)
	Sets built-in transitions. More...

NvsVideoTransition	setPackagedTransition (int srcClipIndex, String packageId)
	Sets resource package transition. More...

NvsVideoTransition	setCustomVideoTransition (int srcClipIndex, NvsCustomVideoTransition.Renderer customVideoTransitionRender)
	Sets custom video transition. More...

NvsVideoTransition	getTransitionBySourceClipIndex (int srcClipIndex)
	Get the transition through the source video clip index. More...

void	setEnableOriginalRender (boolean enable)
	Turn on special effect rendering based on the original scale of the video track. More...

boolean	isOriginalRender ()
	Gets whether the original scale rendering mode is turned on. More...

void	setProxyScale (NvsRational proxyScale)
	Disable the current track from rendering at the proxy scale. More...

NvsRational	getProxyScale ()
	Gets whether the current track is disabled from rendering at the proxy scale. More...

NvsTrackCaption	getFirstCaption ()
	Get the first caption on the track. More...

NvsTrackCaption	getLastCaption ()
	Get the last caption on the track. More...

NvsTrackCaption	getPrevCaption (NvsTrackCaption caption)
	Get the previous caption of the current caption on the track. More...

NvsTrackCaption	getNextCaption (NvsTrackCaption caption)
	Get the next caption of the current caption on the track. More...

List< NvsTrackCaption >	getCaptionsByTimelinePosition (long timelinePos)
	Get a list of captions based on the position on the track. More...

NvsTrackCaption	addCaption (String captionText, long inPoint, long duration, String captionStylePackageId)
	Add a caption on the track. More...

NvsTrackCaption	addPanoramicCaption (String captionText, long inPoint, long duration, String captionStylePackageId)
	Add a panorama caption on the track. More...

NvsTrackCaption	addModularCaption (String captionText, long inPoint, long duration)
	Add a modular caption on the track. More...

NvsTrackCaption	removeCaption (NvsTrackCaption caption)
	Remove the caption on the track. More...

NvsTrackCompoundCaption	getFirstCompoundCaption ()
	Get the first compound caption on the track. More...

NvsTrackCompoundCaption	getLastCompoundCaption ()
	Get the last compound caption on the track. More...

NvsTrackCompoundCaption	getPrevCaption (NvsTrackCompoundCaption caption)
	Get the previous compound caption of the current compound caption on the track. More...

NvsTrackCompoundCaption	getNextCaption (NvsTrackCompoundCaption caption)
	Get the next compound caption of the current compound caption on the track. More...

List< NvsTrackCompoundCaption >	getCompoundCaptionsByTimelinePosition (long timelinePos)
	Get a list of compound captions based on the position on the track. More...

NvsTrackCompoundCaption	addCompoundCaption (long inPoint, long duration, String compoundCaptionPackageId)
	Add a caption on the track. More...

NvsTrackCompoundCaption	removeCompoundCaption (NvsTrackCompoundCaption caption)
	Remove compound caption from the track. More...

NvsTrackAnimatedSticker	getFirstAnimatedSticker ()
	Get the first animated sticker on the track. More...

NvsTrackAnimatedSticker	getLastAnimatedSticker ()
	Get the last animated sticker on the track. More...

NvsTrackAnimatedSticker	getPrevAnimatedSticker (NvsTrackAnimatedSticker animatedSticker)
	Get the previous animated sticker of the current animated sticker of the track. More...

NvsTrackAnimatedSticker	getNextAnimatedSticker (NvsTrackAnimatedSticker animatedSticker)
	Get the next animated sticker of the current animated sticker of the track. More...

List< NvsTrackAnimatedSticker >	getAnimatedStickersByTimelinePosition (long timelinePos)
	Get an animated sticker list based on the position on the track. More...

NvsTrackAnimatedSticker	addAnimatedSticker (long inPoint, long duration, String animatedStickerPackageId)
	Add a animated sticker on the track. More...

NvsTrackAnimatedSticker	addPanoramicAnimatedSticker (long inPoint, long duration, String animatedStickerPackageId)
	Add a panorama animation sticker on the track. More...

NvsTrackAnimatedSticker	addCustomAnimatedSticker (long inPoint, long duration, String animatedStickerPackageId, String customImagePath)
	Add a custom animated sticker on the track. More...

NvsTrackAnimatedSticker	addCustomPanoramicAnimatedSticker (long inPoint, long duration, String animatedStickerPackageId, String customImagePath)
	Add a a custom panorama animated sticker on the track. More...

NvsTrackAnimatedSticker	removeAnimatedSticker (NvsTrackAnimatedSticker animatedSticker)
	Remove an animated sticker on the track. More...

NvsTrackVideoFx	getFirstTrackVideoFx ()
	Get the first track video effect on the track. More...

NvsTrackVideoFx	getLastTrackVideoFx ()
	Get the last track video effect on the track. More...

NvsTrackVideoFx	getPrevTrackVideoFx (NvsTrackVideoFx videoFx)
	Get the previous track video effect of a track video effect on the track. More...

NvsTrackVideoFx	getNextTrackVideoFx (NvsTrackVideoFx videoFx)
	Get the next track video effect of a track video effect on the track. More...

List< NvsTrackVideoFx >	getTrackVideoFxByPosition (long pos)
	Get a list of track video effects based on position on the track. More...

void	updateAudioForTrackVideoFx ()
	Update the audio information in the current track effect. More...

NvsTrackVideoFx	addBuiltinTrackVideoFx (long inPoint, long duration, String videoFxName)
	Add a built-in track video effect on the track. More...

NvsTrackVideoFx	addBuiltinTrackVideoFx (long inPoint, long duration, String videoFxName, int flags)
	Add a built-in track video effect on the track. More...

NvsTrackVideoFx	addPackagedTrackVideoFx (long inPoint, long duration, String videoFxPackageId)
	Add a track video effect in the form of a resource package on the track. More...

NvsTrackVideoFx	addPackagedTrackVideoFx (long inPoint, long duration, String videoFxPackageId, int flags)
	Add a track video effect in the form of a resource package on the track. More...

NvsTrackVideoFx	addCustomTrackVideoFx (long inPoint, long duration, NvsCustomVideoFx.Renderer customVideoFxRender)
	Add a custom track video effect on the track. More...

NvsTrackVideoFx	removeTrackVideoFx (NvsTrackVideoFx videoFx)
	Remove a track video effect from the track. More...

Public Member Functions inherited from com.meicam.sdk.NvsTrack
int	getType ()
	Get track type. More...

int	getIndex ()
	Gets track index. More...

long	getDuration ()
	Gets track length. More...

int	getClipCount ()
	Gets the number of clips on the track. More...

long	changeInPoint (int clipIndex, long newInPoint)
	Modifies the clip's in-point on timeline.If clip does not have this function authorization to return the current InPoint. If newInPoint is less than the outPoint of the previous clip, return the outPoint of the previous clip directly. If the current clip is the 0th clip, newInPoint is at least 0. This function internally calculates a new trimIn based on newInPoint and modifies the trimIn of the clip. If the new trimIn is less than 0, the corresponding Inpoint value when the trimIn is 0 will be returned; if the newInPoint is greater than trimOut, the corresponding Inpoint value of trimOut-1 will be returned. More...

long	changeOutPoint (int clipIndex, long newOutPoint)
	Modifies the clip's out-point on timeline.If clip does not have this function authorization to return the current outPoint.If newOutpoint is less than the outPoint of the clip, then newOutpoint will not be less than inpoint+1; if the clip is followed by nextclip, then newOutpoint will not be greater than the inpoint of nextclip. If the current clip is the last clip, the final outPoint is the duration of the timeline. If newOutpoint is greater than the outPoint of the clip, then the end of the video will be FreezeFrame. This function internally calculates a new trimOut based on newOutPoint, and removes the intermediate transition if the inPoint of the clip is not equal to the outPoint of the next clip. More...

boolean	splitClip (int clipIndex, long splitPoint)
	Splits the specified clip. More...

boolean	removeClip (int clipIndex, boolean keepSpace)
	Removes the specified clip.You are not allowed to remove the opening and ending of a theme. More...

boolean	removeRange (long startTimelinePos, long endTimelinePos, boolean keepSpace)
	Removes all clips within the specified interval, and adjust the timeline in-point or out-point if the clip only partially overlaps the interval., and adjust the timeline in or out point if the clip only partially overlaps the interval.Failed to remove the fragment if it contains the opening and ending sections of the theme.StartTimeLinepos < 0 or endTimeLinepos <= startTimeLinepos will also remove failure. More...

boolean	moveClip (int clipIndex, int destClipIndex)
	Moving the specified clip, swapping the two positions of the input, affects the arrangement of the clip on the timeline.,clipIndex and destClipIndex cannot be equal to clipCount. More...

boolean	moveClip (int clipIndex, long targetTimelinePos, boolean isInsertTarget, boolean keepSpace)
	Moves the specified clip to the input position.. clipIndex greater than or equal to clipCount will fail to remove, targetTimeLinePos equal to 0 will be moved to the 0 position, the theme title title will not be moved. More...

boolean	removeAllClips ()
	Removes all the clips. More...

void	setVolumeGain (float leftVolumeGain, float rightVolumeGain)
	Sets the volume. The final volume value is the track volume Multiplied by the clip volume. More...

NvsVolume	getVolumeGain ()
	Get the volume information. The final volume value is the track volume Multiplied by the clip volume. More...

Public Member Functions inherited from com.meicam.sdk.NvsObject
void	setAttachment (String key, Object value)
	Adds additional data to the NvsObject object to identify the NvsObject object or for other purpose. More...

void	setTemplateAttachment (String key, String value)
	Adds additional template data to the NvsObject object to identify the NvsObject template object. More...

Object	getAttachment (String key)
	Gets an attachment to NvsObject. More...

String	getTemplateAttachment (String key)
	Gets an template attachment to NvsObject. More...

Static Public Attributes
Track type
Video Fx Flags
static final int	TRACK_ADD_VIDEO_FX_FLAGS_RENDER_AT_CLIP_RAW_FILTER = 1

Static Public Attributes inherited from com.meicam.sdk.NvsTrack
static final int	TRACK_TYPE_VIDEO = 0
	Video track. More...

static final int	TRACK_TYPE_AUDIO = 1
	Audio track. More...

Static Public Attributes inherited from com.meicam.sdk.NvsObject
static final String	TEMPLATE_KEY_REPLACE_ID = "MSTemplate-ReplaceId"

static final String	TEMPLATE_KEY_FOOTAGE_CAN_REPLACE = "MSTemplate-FootageCanReplace"

static final String	TEMPLATE_KEY_FOOTAGE_ID = "MSTemplate-FootageId"

static final String	TEMPLATE_KEY_FOOTAGE_NAME = "MSTemplate-FootageName"

static final String	TEMPLATE_KEY_FOOTAGE_M3U8_NAME = "MSTemplate-FootageM3U8Name"

static final String	TEMPLATE_KEY_FOOTAGE_TAGS = "MSTemplate-FootageTags"

static final String	TEMPLATE_KEY_FOOTAGE_TYPE = "MSTemplate-FootageType"

static final String	TEMPLATE_KEY_FOOTAGE_NEED_REVERSE = "MSTemplate-FootageNeedReverse"

static final String	TEMPLATE_KEY_CLIP_RAW_WIDTH = "MSTemplate-ClipRawWidth"

static final String	TEMPLATE_KEY_CLIP_RAW_HEIGHT = "MSTemplate-ClipRawHeight"

static final String	TEMPLATE_KEY_VOLUME_TYPE = "MSTemplate-VolumeType"

static final String	TEMPLATE_KEY_FX_GROUP = "MSTemplate-FxGroup"

static final String	TEMPLATE_KEY_BEST_SEEK_TIME = "MSTemplate-BestSeekTime"

static final String	TEMPLATE_KEY_MASK_TYPE = "MSTemplate-MaskType"

static final String	TEMPLATE_VALUE_MASK_TYPE_LINE = "MSTemplate-MaskType-Line"

static final String	TEMPLATE_VALUE_MASK_TYPE_MIRROR = "MSTemplate-MaskType-Mirror"

static final String	TEMPLATE_VALUE_MASK_TYPE_CIRCLE = "MSTemplate-MaskType-Circle"

static final String	TEMPLATE_VALUE_MASK_TYPE_RECT = "MSTemplate-MaskType-Rect"

static final String	TEMPLATE_VALUE_MASK_TYPE_HEART = "MSTemplate-MaskType-Heart"

static final String	TEMPLATE_VALUE_MASK_TYPE_STAR = "MSTemplate-MaskType-Star"

static final String	TEMPLATE_KEY_TRANS_TYPE_CUT = "MSTemplate-TransType-Cut"

static final String	TEMPLATE_KEY_CURVE_SPEED_TYPE = "MSTemplate-CurveSpeedType"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_CUSTOM = "MSTemplate-CurveSpeedType-Custom"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_MONTAGE = "MSTemplate-CurveSpeedType-Montage"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_HERO = "MSTemplate-CurveSpeedType-Hero"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_BULLET = "MSTemplate-CurveSpeedType-bullet"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_PLUS = "MSTemplate-CurveSpeedType-Plus"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_IN = "MSTemplate-CurveSpeedType-In"

static final String	TEMPLATE_VALUE_CURVE_SPEED_TYPE_OUT = "MSTemplate-CurveSpeedType-Out"

Additional Inherited Members
Protected Member Functions inherited from com.meicam.sdk.NvsObject
void	setInternalObject (long internalObject)

long	getInternalObject ()

Protected Attributes inherited from com.meicam.sdk.NvsObject
long	m_internalObject = 0

Detailed Description

video track,the collection of video clips.

A video track is an entity that holds video clips, and users can add, insert, and delete multiple video clips. The video track continues to expand as the clip increases, and video transitions can be inserted between clips. When adding a package transition, users need to install it and get the packageID returned as the handle of the transition. For built-in transition, their names are regarded as handle. Note: The index of the video clip starts from 0.

Warning: In the NvsVideoTrack class, all public APIs are used in the UI thread! ! !

Member Function Documentation

◆ addAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.addAnimatedSticker	(	long	inPoint,
		long	duration,
		String	animatedStickerPackageId
	)

inline

Add a animated sticker on the track.

Parameters

inPoint	The in point of the animated sticker on the track (in microseconds)
duration	The duration of the animation sticker which displayed (in microseconds)
animatedStickerPackageId	Animated sticker package Id

Returns: Return the NvsTrackAnimatedSticker object.
It will return null in the following situations:
1. No animated sticker function authorization;
2. The animatedStickerPackageId is empty or null;
3. The animatedSticker has not install successed;
4. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.

See also: removeAnimatedSticker

◆ addBuiltinTrackVideoFx() [1/2]

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.addBuiltinTrackVideoFx	(	long	inPoint,
		long	duration,
		String	videoFxName
	)

inline

Add a built-in track video effect on the track.

Parameters

inPoint	The in point of the track video effect on the track (in microseconds)
duration	Duration of the track video effect which displayed (in microseconds)
videoFxName	The video effect name

Returns: Return the NvsTrackVideoFx object

◆ addBuiltinTrackVideoFx() [2/2]

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.addBuiltinTrackVideoFx	(	long	inPoint,
		long	duration,
		String	videoFxName,
		int	flags
	)

inline

Add a built-in track video effect on the track.

Parameters

inPoint	The in point of the track video effect on the track (in microseconds)
duration	Duration of the track video effect which displayed (in microseconds)
videoFxName	The video effect name
flags	The flags when add a build-in track video effect

Returns: Return the NvsTrackVideoFx object

◆ addCaption()

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.addCaption	(	String	captionText,
		long	inPoint,
		long	duration,
		String	captionStylePackageId
	)

inline

Add a caption on the track.

Parameters

captionText	Text of caption
inPoint	The in point of the caption on the track (in microseconds)
duration	Caption display duration (in microseconds)
captionStylePackageId	Caption style package Id.If it does not exist, you can pass an empty string or null.

Returns: Returns the NvsTrackCaption object.
It will return null in the following situations:
1. No caption function authorization;
2. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.

See also: removeCaption

◆ addClip() [1/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.addClip	(	String	filePath,
		long	inPoint
	)

inline

add clip.

Parameters

filePath Clip file path. For the clip's path in Android, there are two ways:

a. Creates an assets folder in the local program path, usually in the same directory as the res folder. The corresponding audio and video resources can be placed inside, the path form: "assets: /video20170406101714.mp4".

b. Imports the audio and video resources in the mobile phone through the absolute path, the path form: "/storage/Media/DCIM/IMG_0646.MP4".

Parameters

inPoint The in point of the clip on the timeline (in microseconds) For more information of the in and out points of a clip on the timeline, please refer to the section trimIn and trimOut.

Returns: Return the added video clip object

Warning: In the NvsVideoTrack class, all public APIs are used in the UI thread! ! !

See also: appendClip; insertClip

◆ addClip() [2/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.addClip	(	String	filePath,
		long	inPoint,
		long	trimIn,
		long	trimOut
	)

inline

Adds a clip of the specified length.

Parameters

filePath	Clip path. For clip path types, please refer to the parameter filePath of addClip().
inPoint	The in point of the clip on the timeline (in microseconds).
trimIn	clip trim in point (in microseconds).
trimOut	clip trim out point (in microseconds).

Returns: Returns the added video clip object. When users use addClip() to add clips, the clip to be added will split the current clip at the specified in point on the timeline. In the specified in point, the clips contained in the position corresponding to the length of the clip to be added on the track will be deleted. Then the clips to be added can be added. If there is a gap in the corresponding position, it will be covered directly. examples are as follows:

As shown above, there are three video clips C1, C2, C3 on the track, and a clip C4 is to be added. The arrow on the C4 clip points to the trim in amd out points of the clip. The arrow on the track refers to the in-point of the clip on the timeline. After clipping, the corresponding clip is added to the track. The code is implemented as follows: NvsVideoTrack videoTrack; //videoTrack Omits creation here. videoTrack.addClip(filepath,inPoint,trimIn,trimOut);//Filepath is the path of the clip C4, and inPoint is the value of the position indicated by the arrow on the track in the figure, and trimIn and trimOut are the values at the position indicated by the arrow on the C4 clip of the above figure.

When added, the results are as follows:

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.; Parameters need to meet (0 <= trimIn < trimOut). If trimOut is bigger than the file original duration, it will be played in the last frame

See also: appendClip; insertClip

◆ addCompoundCaption()

NvsTrackCompoundCaption com.meicam.sdk.NvsVideoTrack.addCompoundCaption	(	long	inPoint,
		long	duration,
		String	compoundCaptionPackageId
	)

inline

Add a caption on the track.

Parameters

captionText	Text of caption
inPoint	The in point of the caption on the track (in microseconds)
duration	Caption display duration (in microseconds)
captionStylePackageId	Caption style package Id.If it does not exist, you can pass an empty string or null.

Returns: Returns the NvsTrackCaption object.
It will return null in the following situations:
1. No compound caption function authorization;
2. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.

Since: 2.9.0

See also: removeCompoundCaption

◆ addCustomAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.addCustomAnimatedSticker	(	long	inPoint,
		long	duration,
		String	animatedStickerPackageId,
		String	customImagePath
	)

inline

Add a custom animated sticker on the track.

Parameters

inPoint	The in point of custom animated sticker on the track (in microseconds)
duration	The duration of custom animation sticker which displayed (in microseconds)
animatedStickerPackageId	Animated sticker package Id
customImagePath	Path of custom animated sticker image(It can be a jpg, png image, or a dynamic caf format image supported by Meishe sdk)

Returns: Return the NvsTrackAnimatedSticker object.
It will return null in the following situations:
1. No animated sticker function authorization;
2. The animatedStickerPackageId is empty or null;
3. The animatedSticker has not install successed;
4. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.
Note: If the return value is not null, you still cannot see the sticker effect, you need to check whether the customImagePath actually exists.

See also: removeAnimatedSticker

◆ addCustomPanoramicAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.addCustomPanoramicAnimatedSticker	(	long	inPoint,
		long	duration,
		String	animatedStickerPackageId,
		String	customImagePath
	)

inline

Add a a custom panorama animated sticker on the track.

Parameters

inPoint	The in point of custom animated sticker on the track (in microseconds)
duration	The duration of custom animation sticker which displayed (in microseconds)
animatedStickerPackageId	Animated sticker package Id
customImagePath	Path of custom animated sticker image

Returns: Return the NvsTrackAnimatedSticker object.
It will return null in the following situations:
1. No animated sticker function authorization or no panoramic function authorization;
2. The animatedStickerPackageId is empty or null;
3. The animatedSticker has not install successed;
4. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.
Note: If the return value is not null, you still cannot see the sticker effect, you need to check whether the customImagePath actually exists.

Since: 1.6.0

See also: removeAnimatedSticker

◆ addCustomTrackVideoFx()

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.addCustomTrackVideoFx	(	long	inPoint,
		long	duration,
		NvsCustomVideoFx.Renderer	customVideoFxRender
	)

inline

Add a custom track video effect on the track.

Parameters

inPoint	The in point of the track video effect on the track (in microseconds)
duration	Duration of the track video effect which displayed (in microseconds)
customVideoFxRender	User-implemented custom video effects renderer interface

Returns: Return the NvsTrackVideoFx object

Since: 2.15.0

◆ addModularCaption()

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.addModularCaption	(	String	captionText,
		long	inPoint,
		long	duration
	)

inline

Add a modular caption on the track.

Parameters

captionText	Text of caption
inPoint	The in point of the caption on the track (in microseconds)
duration	Caption display duration (in microseconds)

Returns: Returns the NvsTrackCaption object.
It will return null in the following situations:
1. No caption function authorization;
2. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.

See also: removeCaption

◆ addPackagedTrackVideoFx() [1/2]

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.addPackagedTrackVideoFx	(	long	inPoint,
		long	duration,
		String	videoFxPackageId
	)

inline

Add a track video effect in the form of a resource package on the track.

Parameters

inPoint	The in point of the track video effect on the track (in microseconds)
duration	Duration of the track video effect which displayed (in microseconds)
videoFxPackageId	The Id of resource package

Returns: Return the NvsTrackVideoFx object

◆ addPackagedTrackVideoFx() [2/2]

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.addPackagedTrackVideoFx	(	long	inPoint,
		long	duration,
		String	videoFxPackageId,
		int	flags
	)

inline

Add a track video effect in the form of a resource package on the track.

Parameters

inPoint	The in point of the track video effect on the track (in microseconds)
duration	Duration of the track video effect which displayed (in microseconds)
videoFxPackageId	The Id of resource package
flags	The flags when add a package track video effect

Returns: Return the NvsTrackVideoFx object

◆ addPanoramicAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.addPanoramicAnimatedSticker	(	long	inPoint,
		long	duration,
		String	animatedStickerPackageId
	)

inline

Add a panorama animation sticker on the track.

Parameters

inPoint	The in point of the animated sticker on the track (in microseconds)
duration	The duration of the animation sticker which displayed (in microseconds)
animatedStickerPackageId	Animated sticker package Id

Returns: Return the NvsTrackAnimatedSticker object.
It will return null in the following situations:
1. No animated sticker function authorization or no panoramic function authorization;
2. The animatedStickerPackageId is empty or null;
3. The animatedSticker has not install successed;
4. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.

Since: 1.6.0

See also: removeAnimatedSticker

◆ addPanoramicCaption()

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.addPanoramicCaption	(	String	captionText,
		long	inPoint,
		long	duration,
		String	captionStylePackageId
	)

inline

Add a panorama caption on the track.

Parameters

captionText	Text of caption
inPoint	The in point of the caption on the track (in microseconds)
duration	Caption display duration (in microseconds)
captionStylePackageId	Caption style package Id.If it does not exist, you can pass an empty string or null.

Returns: Returns the NvsTrackCaption object.
It will return null in the following situations:
1. No caption function authorization;
2. If inPoint is less than 0 or greater than or equal to the current track duration, or duration is not greater than 0.

Since: 1.6.0

See also: removeCaption

◆ addTimelineClip() [1/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.addTimelineClip	(	NvsTimeline	timeline,
		long	inPoint
	)

inline

Adds timeline clip.

Parameters

timeline	The timeline object to be added.
inPoint	The in point of the clip on the timeline (in microseconds)

Returns: Return the added video clip object

Warning: In the NvsVideoTrack class, all public APIs are used in the UI thread! ! !

See also: appendTimelineClip; insertTimelineClip

Since: 2.24.0

◆ addTimelineClip() [2/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.addTimelineClip	(	NvsTimeline	timeline,
		long	inPoint,
		long	trimIn,
		long	trimOut
	)

inline

Adds a timeline clip of the specified length.

Parameters

timeline	The timeline object to be added.
inPoint	The in point of the clip on the timeline (in microseconds).
trimIn	clip trim in point (in microseconds).
trimOut	clip trim out point (in microseconds).

Returns: Returns the added video clip object.

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.; Parameters need to meet (0 <= trimIn < trimOut). If trimOut is bigger than the added timeline duration, it will be played in the last frame

See also: appendTimelineClip; insertTimelineClip

Since: 2.24.0

◆ appendClip() [1/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.appendClip ( String filePath )

inline

Appends a video clip to the end of the video track.

Parameters

filePath Video clip path. For clip path types, please refer to the parameter filePath of addClip().

Returns: Returns the appended video clip object. example:

In the above picture, there are three clips on the video track, namely C1, C2, C3, and a new clip C4 is added to the end of the video track. NvsVideoTrack m_videoTrack;//m_videoTrack omitted creation NvsVideoClip m_videoClip; m_videoClip = m_videoTrack.appendClip(filepath) //Filepath is the path of clip C4. After appending, it becomes:：

Warning: This interface causes the streaming engine state to jump to the engine stop state. For more details, please refer to Engine Changes.

See also: insertClip

◆ appendClip() [2/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.appendClip	(	String	filePath,
		long	trimIn,
		long	trimOut
	)

inline

Appends a video clip of the specified length to the end of the video track.

Parameters

filePath	Video clip path. For clip path types, please refer to the parameter filePath of addClip().
trimIn	Trim in point of video clips (in microseconds).
trimOut	Trim out point of video clips (in microseconds).

Returns: Returns the appended video clip object. For more information of trim in and out points, please refer to the section trimIn and trimOut.

Warning: In the NvsVideoTrack class, all public APIs are used in the UI thread! ! !; Parameters need to meet (0 <= trimIn < trimOut). If trimOut is bigger than the file original duration, it will be played in the last frame

See also: insertClip

◆ appendTimelineClip() [1/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.appendTimelineClip ( NvsTimeline timeline )

inline

Appends a timeline clip to the end of the video track.

Parameters

timeline The timeline object to be appended.

Returns: Returns the appended video clip object.

Warning: This interface causes the streaming engine state to jump to the engine stop state. For more details, please refer to Engine Changes.

See also: insertTimelineClip

Since: 2.24.0

◆ appendTimelineClip() [2/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.appendTimelineClip	(	NvsTimeline	timeline,
		long	trimIn,
		long	trimOut
	)

inline

Appends a timeline clip of the specified length to the end of the video track.

Parameters

timeline	The timeline to be appended.
trimIn	Trim in point of video clips (in microseconds).
trimOut	Trim out point of video clips (in microseconds).

Returns: Returns the appended video clip object. For more information of trim in and out points, please refer to the section trimIn and trimOut.

Warning: In the NvsVideoTrack class, all public APIs are used in the UI thread! ! !; Parameters need to meet (0 <= trimIn < trimOut). If trimOut is bigger than the timeline duration, it will be played in the last frame

See also: insertClip

Since: 2.24.0

◆ getAnimatedStickersByTimelinePosition()

List<NvsTrackAnimatedSticker> com.meicam.sdk.NvsVideoTrack.getAnimatedStickersByTimelinePosition ( long timelinePos )

inline

Get an animated sticker list based on the position on the track.

Parameters

trackPos Position on the track (in microseconds)

Returns: Returns a list which holding the current position animated sticker object
The sorting rules for the obtained animated sticker list are as follows:
1.When adding, the in points are different,animated stickers are arranged in the order of the in points;
2.When adding, the in points are the same, they are arranged in the order in which the animation stickers are added.

See also: addAnimatedSticker

◆ getCaptionsByTimelinePosition()

List<NvsTrackCaption> com.meicam.sdk.NvsVideoTrack.getCaptionsByTimelinePosition ( long timelinePos )

inline

Get a list of captions based on the position on the track.

Parameters

trackPos The position on the track(in micro-second)

Returns: Returns a list of arrays of captions at the current position。
The sorting rules for the obtained captions list are as follows:
1.When adding, the in points are different, and captions are arranged in the order of the in points;
2.When adding, the in points are the same, and captions are arranged in the order of adding captions.

See also: addCaption

◆ getClipByIndex()

NvsVideoClip com.meicam.sdk.NvsVideoTrack.getClipByIndex ( int clipIndex )

inline

Gets video clip by index.

Parameters

clipIndex Video clip index. Clip index value range: NvsVideoTrack m_videoTrack;//m_videoTrack omitted creation int clipCount = m_videoTrack.getClipCount(); The value of clipIndex is [0, clipCount-1]

Returns: Returns the captured video clip object.

See also: getClipByTimelinePosition; insertClip; appendClip

◆ getClipByTimelinePosition()

NvsVideoClip com.meicam.sdk.NvsVideoTrack.getClipByTimelinePosition ( long timelinePos )

inline

Gets video clip by time.

Parameters

timelinePos Position on the timeline (in microseconds).

Returns: Returns the captured video clip object.

See also: getClipByIndex

◆ getCompoundCaptionsByTimelinePosition()

List<NvsTrackCompoundCaption> com.meicam.sdk.NvsVideoTrack.getCompoundCaptionsByTimelinePosition ( long timelinePos )

inline

Get a list of compound captions based on the position on the track.

Parameters

trackPos The position on the track(in micro-second)

Returns: Returns a list of compound captions at the current position。
The sorting rules for the obtained captions list are as follows:
1. If the in points are different, captions are sorted in the order of the in points;
2. If the in points are the same, and captions are sorted in the order of compound caption added.

Since: 2.9.0

See also: addCompoundCaption

◆ getFirstAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.getFirstAnimatedSticker ( )

inline

Get the first animated sticker on the track.

Returns: Return the acquired NvsTrackAnimatedSticker object.

See also: getLastAnimatedSticker; addAnimatedSticker

◆ getFirstCaption()

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.getFirstCaption ( )

inline

Get the first caption on the track.

Returns: Returns the NvsTrackCaption object.

See also: getLastCaption; addCaption

◆ getFirstCompoundCaption()

NvsTrackCompoundCaption com.meicam.sdk.NvsVideoTrack.getFirstCompoundCaption ( )

inline

Get the first compound caption on the track.

Returns: Returns the compound caption object.

Since: 2.9.0

See also: getLastCompoundCaption; addCompoundCaption

◆ getFirstTrackVideoFx()

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.getFirstTrackVideoFx ( )

inline

Get the first track video effect on the track.

Returns: Returns the acquired NvsTrackVideoFx object.

◆ getLastAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.getLastAnimatedSticker ( )

inline

Get the last animated sticker on the track.

Returns: Return the acquired NvsTrackAnimatedSticker object.

See also: getFirstAnimatedSticker

◆ getLastCaption()

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.getLastCaption ( )

inline

Get the last caption on the track.

Returns: Returns the NvsTrackCaption object.

See also: getFirstCaption; addCaption

◆ getLastCompoundCaption()

NvsTrackCompoundCaption com.meicam.sdk.NvsVideoTrack.getLastCompoundCaption ( )

inline

Get the last compound caption on the track.

Returns: Returns the compound caption object.

Since: 2.9.0

See also: getFirstCompoundCaption; addCompoundCaption

◆ getLastTrackVideoFx()

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.getLastTrackVideoFx ( )

inline

Get the last track video effect on the track.

Returns: Returns the acquired NvsTrackVideoFx object.

◆ getNextAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.getNextAnimatedSticker ( NvsTrackAnimatedSticker animatedSticker )

inline

Get the next animated sticker of the current animated sticker of the track.

Parameters

animatedSticker the current NvsTrackAnimatedSticker obejct

Returns: Return the acquired NvsTrackAnimatedSticker object.

See also: getPrevAnimatedSticker

◆ getNextCaption() [1/2]

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.getNextCaption ( NvsTrackCaption caption )

inline

Get the next caption of the current caption on the track.

Parameters

caption The current caption on the track

Returns: Returns the NvsTrackCaption object.

See also: getPrevCaption

◆ getNextCaption() [2/2]

NvsTrackCompoundCaption com.meicam.sdk.NvsVideoTrack.getNextCaption ( NvsTrackCompoundCaption caption )

inline

Get the next compound caption of the current compound caption on the track.

Parameters

caption The current compound caption on the track

Returns: Returns the compound caption object.

Since: 2.9.0

See also: getPrevCompoundCaption

◆ getNextTrackVideoFx()

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.getNextTrackVideoFx ( NvsTrackVideoFx videoFx )

inline

Get the next track video effect of a track video effect on the track.

Parameters

videoFx The NvsTrackVideoFx object

Returns: Returns the acquired NvsTrackVideoFx object.

◆ getPrevAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.getPrevAnimatedSticker ( NvsTrackAnimatedSticker animatedSticker )

inline

Get the previous animated sticker of the current animated sticker of the track.

Parameters

animatedSticker the current NvsTrackAnimatedSticker obejct

Returns: Return the acquired NvsTrackAnimatedSticker object.

See also: getNextAnimatedSticker

◆ getPrevCaption() [1/2]

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.getPrevCaption ( NvsTrackCaption caption )

inline

Get the previous caption of the current caption on the track.

Parameters

caption The current caption on the track

Returns: Returns the NvsTrackCaption object.

See also: getNextCaption

◆ getPrevCaption() [2/2]

NvsTrackCompoundCaption com.meicam.sdk.NvsVideoTrack.getPrevCaption ( NvsTrackCompoundCaption caption )

inline

Get the previous compound caption of the current compound caption on the track.

Parameters

caption The current compound caption on the track

Returns: Returns the compound caption object.

Since: 2.9.0

See also: getNextCompoundCaption

◆ getPrevTrackVideoFx()

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.getPrevTrackVideoFx ( NvsTrackVideoFx videoFx )

inline

Get the previous track video effect of a track video effect on the track.

Parameters

videoFx The NvsTrackVideoFx object

Returns: Returns the acquired NvsTrackVideoFx object.

◆ getProxyScale()

NvsRational com.meicam.sdk.NvsVideoTrack.getProxyScale ( )

inline

Gets whether the current track is disabled from rendering at the proxy scale.

Returns: Disable or not.

See also: disableProxyScale

Since: 2.19.1

◆ getTrackVideoFxByPosition()

List<NvsTrackVideoFx> com.meicam.sdk.NvsVideoTrack.getTrackVideoFxByPosition ( long pos )

inline

Get a list of track video effects based on position on the track.

Parameters

Pos	The position on the track (in microseconds)

Returns: Returns an list of track video effects in current position.
The ordering rules for the acquired track video effects are as follows:
1.When adding, the in points are different, arranged in the order of the in points;
2.When adding, the entry points are the same, arranged in the order of adding track video effects.

◆ getTransitionBySourceClipIndex()

NvsVideoTransition com.meicam.sdk.NvsVideoTrack.getTransitionBySourceClipIndex ( int srcClipIndex )

inline

Get the transition through the source video clip index.

Parameters

srcClipIndex Source video clip index.

Returns: Returns the obtained video transition object.

See also: setBuiltinTransition

◆ insertClip() [1/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.insertClip	(	String	filePath,
		int	clipIndex
	)

inline

Inserts a video clip at the specified clip index on the video track.

Parameters

filePath	Video clip path. For clip path type, please refer to the parameter filePath of addClip().
clipIndex	Index of the inserted clip.

Returns: Returns the inserted video clip object. insertClip() inserts a clip right before the one indexed by clipIndex. An example is as follows:

There are three video clips C1, C2, and C3 on the track in the above figure, and the clip to be inserted is recorded as C4. If the clip is inserted before C1, the clipIndex value is 0 and same rule can be used in other cases. The corresponding code is implemented as follows: NvsVideoTrack m_videoTrack;//m_videoTrack omitted creation int clipCount = m_videoTrack.getClipCount(); NvsVideoClip m_videoClip; m_videoClip = m_videoTrack.insertClip(filepath,0); //Filepath is the path of clip C4, and the value of clipIndex is [0, clipCount-1] After insertion, it becomes:

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.; If index is greater than the number of existing clips, it is added at the end.If the value of clipIndex is equal to 0, meanwhile the timeline contain themeLeader,the return object is NULL.If the value of clipIndex is more or equal to the getClipCount() of this track, meanwhile the timeline contain themeTrailer,the return object is NULL.

See also: appendClip

◆ insertClip() [2/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.insertClip	(	String	filePath,
		long	trimIn,
		long	trimOut,
		int	clipIndex
	)

inline

Inserts a video clip of the specified length at the specified clip index on the video track.

Parameters

filePath	Video clip path. For the clip path method, please refer to the parameter filePath of addClip().
clipIndex	Index of the inserted clip.
trimIn	Trim in point of video clips (in microseconds)
trimOut	Trim out point of video clips (in microseconds)）

Returns: Returns the inserted video clip object.

There are three video clips C1, C2, C3 on the track in the above figure, and the clip C4 is to be inserted. The point indicated by the arrow on the C4 clip is the clip's trim in and out points, C4 is inserted after trim. Note: The trim in and out values must be within the duration of this clip, and the trim in point value must be less than the trim out point value. The implementation code is as follows: NvsVideoTrack m_videoTrack;//m_videoTrack Omits creation int clipCount = m_videoTrack.getClipCount(); NvsVideoClip m_videoClip; m_videoClip = m_videoTrack.insertClip(filepath,trimIn,trimOut,0);//Filepath is the path of clip C4, trim in and trim out are the values at the position indicated by the arrow on the C4 clip of the above figure, and the value of clipIndex is [0, clipCount-1]. After insertion, it becomes:

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.; If index is greater than the number of existing clips, it is added at the end.If the value of clipIndex is equal to 0, meanwhile the timeline contain themeLeader,the return object is NULL.If the value of clipIndex is more or equal to the getClipCount() of this track, meanwhile the timeline contain themeTrailer,the return object is NULL.; Parameters need to meet (0 <= trimIn < trimOut). If trimOut is bigger than the file original duration, it will be played in the last frame

See also: appendClip

◆ insertTimelineClip() [1/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.insertTimelineClip	(	NvsTimeline	timeline,
		int	clipIndex
	)

inline

Inserts a timeline clip at the specified clip index on the video track.

Parameters

timeline	The timeline object to be inserted.
clipIndex	Index of the inserted clip.

Returns: Returns the inserted video clip object. insertTimelineClip() inserts a clip before the one indexed by clipIndex.

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.; If index is greater than the number of existing clips, it is added at the end.If the value of clipIndex is equal to 0, meanwhile the timeline contain themeLeader,the return object is NULL.If the value of clipIndex is more or equal to the getClipCount() of this track, meanwhile the timeline contain themeTrailer,the return object is NULL.

See also: appendClip

Since: 2.24.0

◆ insertTimelineClip() [2/2]

NvsVideoClip com.meicam.sdk.NvsVideoTrack.insertTimelineClip	(	NvsTimeline	timeline,
		long	trimIn,
		long	trimOut,
		int	clipIndex
	)

inline

Inserts a timeline clip of the specified length at the specified clip index on the video track.

Parameters

timeline	The timeline object to be inserted.
clipIndex	Index of the inserted clip.
trimIn	Trim in point of video clips (in microseconds)
trimOut	Trim out point of video clips (in microseconds)）

Returns: Returns the inserted video clip object.

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.; If index is greater than the number of existing clips, it is added at the end.If the value of clipIndex is equal to 0, meanwhile the timeline contain themeLeader,the return object is NULL.If the value of clipIndex is more or equal to the getClipCount() of this track, meanwhile the timeline contain themeTrailer,the return object is NULL.; Parameters need to meet (0 <= trimIn < trimOut). If trimOut is bigger than the inserted timeline duration, it will be played in the last frame

See also: appendTimelineClip

Since: 2.24.0

◆ isOriginalRender()

boolean com.meicam.sdk.NvsVideoTrack.isOriginalRender ( )

inline

Gets whether the original scale rendering mode is turned on.

Returns: Turn on or not.

See also: setEnableOriginalRender

◆ removeAnimatedSticker()

NvsTrackAnimatedSticker com.meicam.sdk.NvsVideoTrack.removeAnimatedSticker ( NvsTrackAnimatedSticker animatedSticker )

inline

Remove an animated sticker on the track.

Parameters

animatedSticker The NvsTrackAnimatedSticker object which will be removed

Returns: Return the next NvsTrackAnimatedSticker object.

See also: addAnimatedSticker

◆ removeCaption()

NvsTrackCaption com.meicam.sdk.NvsVideoTrack.removeCaption ( NvsTrackCaption caption )

inline

Remove the caption on the track.

Parameters

caption track caption object which removed

Returns: Returns the next NvsTrackCaption object.

See also: addCaption

◆ removeCompoundCaption()

NvsTrackCompoundCaption com.meicam.sdk.NvsVideoTrack.removeCompoundCaption ( NvsTrackCompoundCaption caption )

inline

Remove compound caption from the track.

Parameters

caption track compound caption object which to be removed

Returns: Returns the next compound caption object.

Since: 2.9.0

See also: addCompoundCaption

◆ removeTrackVideoFx()

NvsTrackVideoFx com.meicam.sdk.NvsVideoTrack.removeTrackVideoFx ( NvsTrackVideoFx videoFx )

inline

Remove a track video effect from the track.

Parameters

videoFx The NvsTrackVideoFx object which will be removed

Returns: Returns the next NvsTrackVideoFx object of current track video effect which has removed.

◆ setBuiltinTransition()

NvsVideoTransition com.meicam.sdk.NvsVideoTrack.setBuiltinTransition	(	int	srcClipIndex,
		String	transitionName
	)

inline

Sets built-in transitions.

Parameters

srcClipIndex	Source video clip index.
transitionName	The name of the transition. To get the video transition name, please refer to getAllBuiltinVideoTransitionNames() or built-in effect name list. Note: If the transition name is set to a null string, the original transition will be deleted.

Returns: Returns the video transition object. If the transitionName is set to a null string (namely, to delete the original transition), return null.

For instance: There are four video clips on the track in the below figure, which are C1, C2, C3, and C4, respectively, where clip C1, C2, and C3 are adjacent, and there is a gap between clip C3 and C4. If a transition is set between C1 and C2, it becomes:

               NvsVideoTrack m_videoTrack;//m_videoTrack omitted creation
               int clipCount = m_videoTrack.getClipCount();
               NvsVideoTransition m_videoTransition;
               m_videoTransition = m_videoTrack.setBuiltinTransition(0,transitionName) //srcClipIndex takes the range of (1, clipCount-1), and transitionName is the name of the transition to be set.

If a transition is added between C2 and C3, the index is 1. The transition can only be set between two adjacent clips. Since there is a gap between the C3 and C4 clip in the above figure, it is not possible to add a transition between the two clips.

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.

See also: setPackagedTransition

◆ setCustomVideoTransition()

NvsVideoTransition com.meicam.sdk.NvsVideoTrack.setCustomVideoTransition	(	int	srcClipIndex,
		NvsCustomVideoTransition.Renderer	customVideoTransitionRender
	)

inline

Sets custom video transition.

Parameters

srcClipIndex	Source video clip index.
customVideoTransitionRender	User-implemented custom video effects renderer interface;

Returns: Returns the video transition object.

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.

See also: setBuiltinTransition

◆ setEnableOriginalRender()

void com.meicam.sdk.NvsVideoTrack.setEnableOriginalRender ( boolean enable )

inline

Turn on special effect rendering based on the original scale of the video track.

Parameters

Enable Turn on or not.

See also: IsOriginalRender

◆ setPackagedTransition()

NvsVideoTransition com.meicam.sdk.NvsVideoTrack.setPackagedTransition	(	int	srcClipIndex,
		String	packageId
	)

inline

Sets resource package transition.

Parameters

srcClipIndex	Source video clip index.
packageId	Transition resource package ID. If the package Id is null, the transition at the video clip is deleted; if the package Id is set to "theme", the transition at the video clip is set to the one of the current theme. If there is no theme, the transition at the video clip should be deleted.

Returns: Returns the video transition object.

Warning: This interface will cause the streaming engine state to jump to the engine stop state. For details, please refer to Engine Change.

See also: setBuiltinTransition

◆ setProxyScale()

void com.meicam.sdk.NvsVideoTrack.setProxyScale ( NvsRational proxyScale )

inline

Disable the current track from rendering at the proxy scale.

Parameters

disable Disable or not.

See also: isProxyScaleDisable

Since: 2.19.1

◆ updateAudioForTrackVideoFx()

void com.meicam.sdk.NvsVideoTrack.updateAudioForTrackVideoFx ( )

inline

Update the audio information in the current track effect.

Returns

Since: 3.8.0

Member Data Documentation

◆ TRACK_ADD_VIDEO_FX_FLAGS_RENDER_AT_CLIP_RAW_FILTER

final int com.meicam.sdk.NvsVideoTrack.TRACK_ADD_VIDEO_FX_FLAGS_RENDER_AT_CLIP_RAW_FILTER = 1

static

Render this effect when rendering the raw filter on video clip

The documentation for this class was generated from the following file:

src/android/jar/com/meicam/sdk/NvsVideoTrack.java

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addAnimatedSticker()

◆ addBuiltinTrackVideoFx() [1/2]

◆ addBuiltinTrackVideoFx() [2/2]

◆ addCaption()

◆ addClip() [1/2]

◆ addClip() [2/2]

◆ addCompoundCaption()

◆ addCustomAnimatedSticker()

◆ addCustomPanoramicAnimatedSticker()

◆ addCustomTrackVideoFx()

◆ addModularCaption()

◆ addPackagedTrackVideoFx() [1/2]

◆ addPackagedTrackVideoFx() [2/2]

◆ addPanoramicAnimatedSticker()

◆ addPanoramicCaption()

◆ addTimelineClip() [1/2]

◆ addTimelineClip() [2/2]

◆ appendClip() [1/2]

◆ appendClip() [2/2]

◆ appendTimelineClip() [1/2]

◆ appendTimelineClip() [2/2]

◆ getAnimatedStickersByTimelinePosition()

◆ getCaptionsByTimelinePosition()

◆ getClipByIndex()

◆ getClipByTimelinePosition()

◆ getCompoundCaptionsByTimelinePosition()

◆ getFirstAnimatedSticker()

◆ getFirstCaption()

◆ getFirstCompoundCaption()

◆ getFirstTrackVideoFx()

◆ getLastAnimatedSticker()

◆ getLastCaption()

◆ getLastCompoundCaption()

◆ getLastTrackVideoFx()

◆ getNextAnimatedSticker()

◆ getNextCaption() [1/2]

◆ getNextCaption() [2/2]

◆ getNextTrackVideoFx()

◆ getPrevAnimatedSticker()

◆ getPrevCaption() [1/2]

◆ getPrevCaption() [2/2]

◆ getPrevTrackVideoFx()

◆ getProxyScale()

◆ getTrackVideoFxByPosition()

◆ getTransitionBySourceClipIndex()

◆ insertClip() [1/2]

◆ insertClip() [2/2]

◆ insertTimelineClip() [1/2]

◆ insertTimelineClip() [2/2]

◆ isOriginalRender()

◆ removeAnimatedSticker()

◆ removeCaption()

◆ removeCompoundCaption()

◆ removeTrackVideoFx()

◆ setBuiltinTransition()

◆ setCustomVideoTransition()

◆ setEnableOriginalRender()

◆ setPackagedTransition()

◆ setProxyScale()

◆ updateAudioForTrackVideoFx()

Member Data Documentation

◆ TRACK_ADD_VIDEO_FX_FLAGS_RENDER_AT_CLIP_RAW_FILTER
